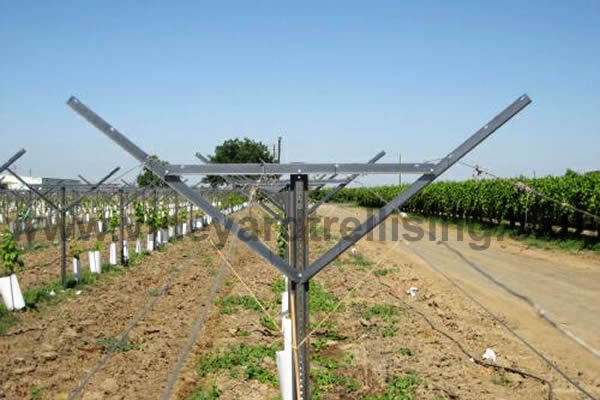

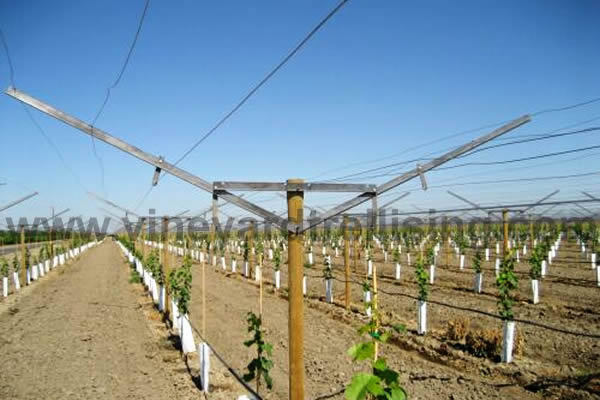

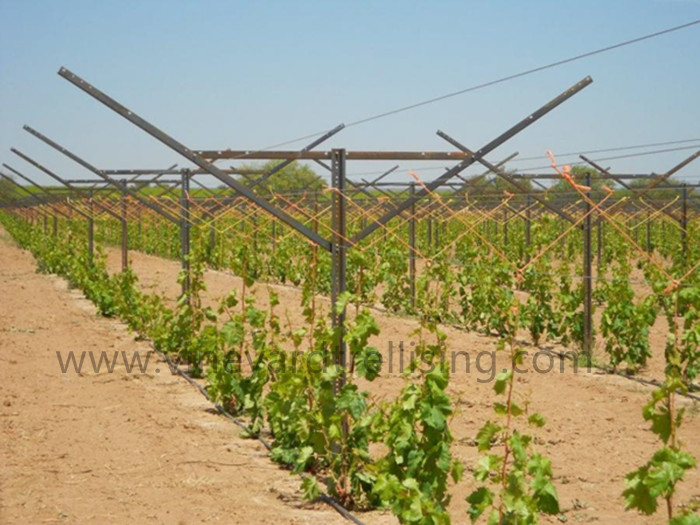

Open Gable Trellis System

The standard open gable trellis system(“V” or “Y”type vineyard post),used for vineyard,enables sunlight to reach more leaves,and makes the grape grow better.

Open Gable Trellis Post is an essential part of growing beautiful and healthy grapes. They also serve

many other purposes. Grape vines become heavy after they start bearing fruit.

Trellis offers better support when vine is trained, and it grows up on the wires as well as supports.

The metal steel open gable trellis system mainly used in vineyard, orchard, grape manor, agriculture plantation

and farming. Compared to traditional wooden post systems, it has far more advantages thanks to its design and

easy set-up, strong and long life.

The gable trellis pole allows for better air flow and efficient growing techniques. It also creates a cooler and

shaded environment for harvesting. Our unique trellis system enhances our plastic covering program ensuring

quality product for the fall harvest.

		Head system On both ends of each row	Line system In the middle of each row
Materials		Q195/Q235 steel

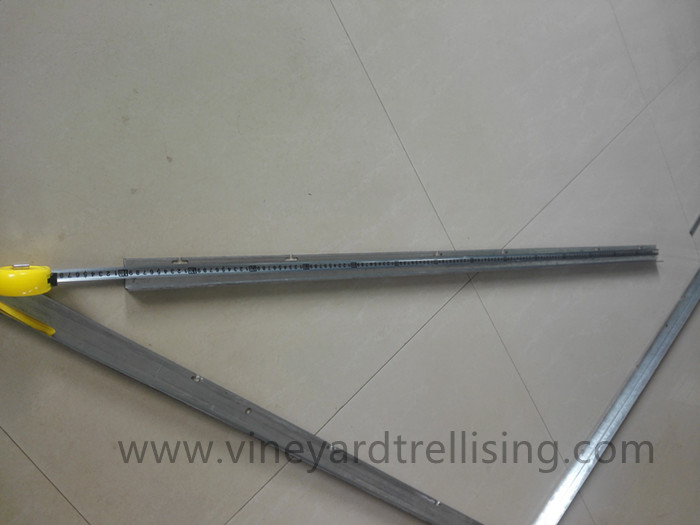

length	Right/left arms	0.8-1.5m,it can be customized
	Cross arm
thickness	Right/left arms	4.0mm,5.0mm etc	2.0mm,2.5mm,2.7mm etc
	Cross arm

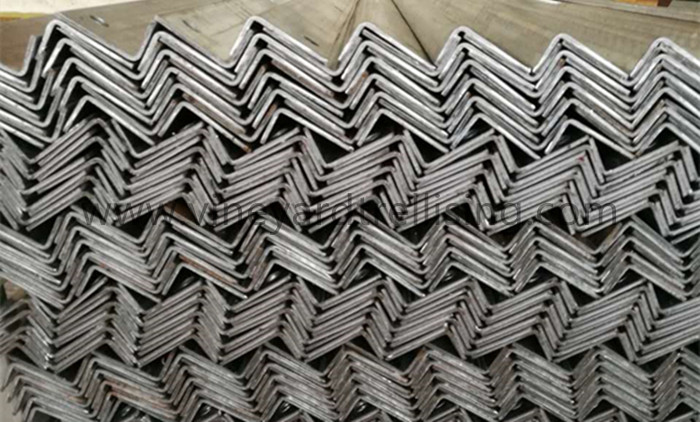

steel angle, cross section “L” size:	Right/left arms	1.75”x1”(44.4525.4mm) 2”x2”(50.850.8mm) 2”x1.5” (50.8*38mm) etc
	Cross arm
Surface treatment		Galvanized,hot dipped galvanized etc

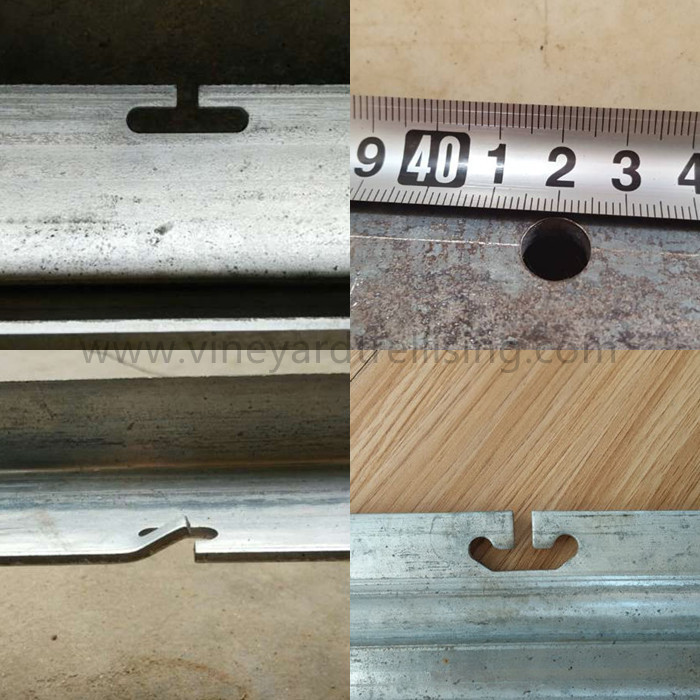

The holes		Round holes or “T” type holes
MOQ		A 20’container

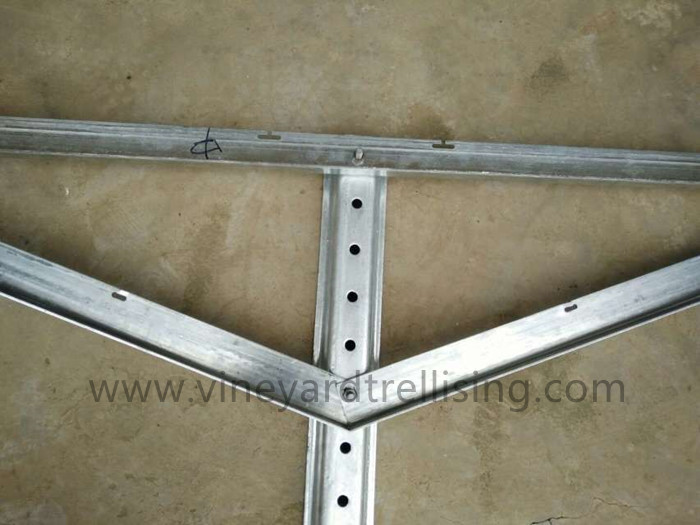

A set T type vineyard post= a right arm + a left arm +a cross arm And with some accessories

The holes type: Round holes,T type holes

Packaging: on metal pallet or wooden pallets
